Oil Furnace Electrode Adjustment. MSR Electrode and Nozzle Replacement HD YouTube Adjusting electrodes in your oil burner is something normally done by a professional, however it is not rocket science Now that you have the necessary tools and have taken the necessary safety precautions, let's proceed with adjusting the electrodes
MSR Electrode and Nozzle Replacement HD YouTube from www.youtube.com
The following diagram will show you the 5/16" standard specifications: The standard 5/16" dimension can be used on all Series AF, AFG, SR, SM and SF burners using the "F" style head and will remain the standard. Now that you have the necessary tools and have taken the necessary safety precautions, let's proceed with adjusting the electrodes
MSR Electrode and Nozzle Replacement HD YouTube

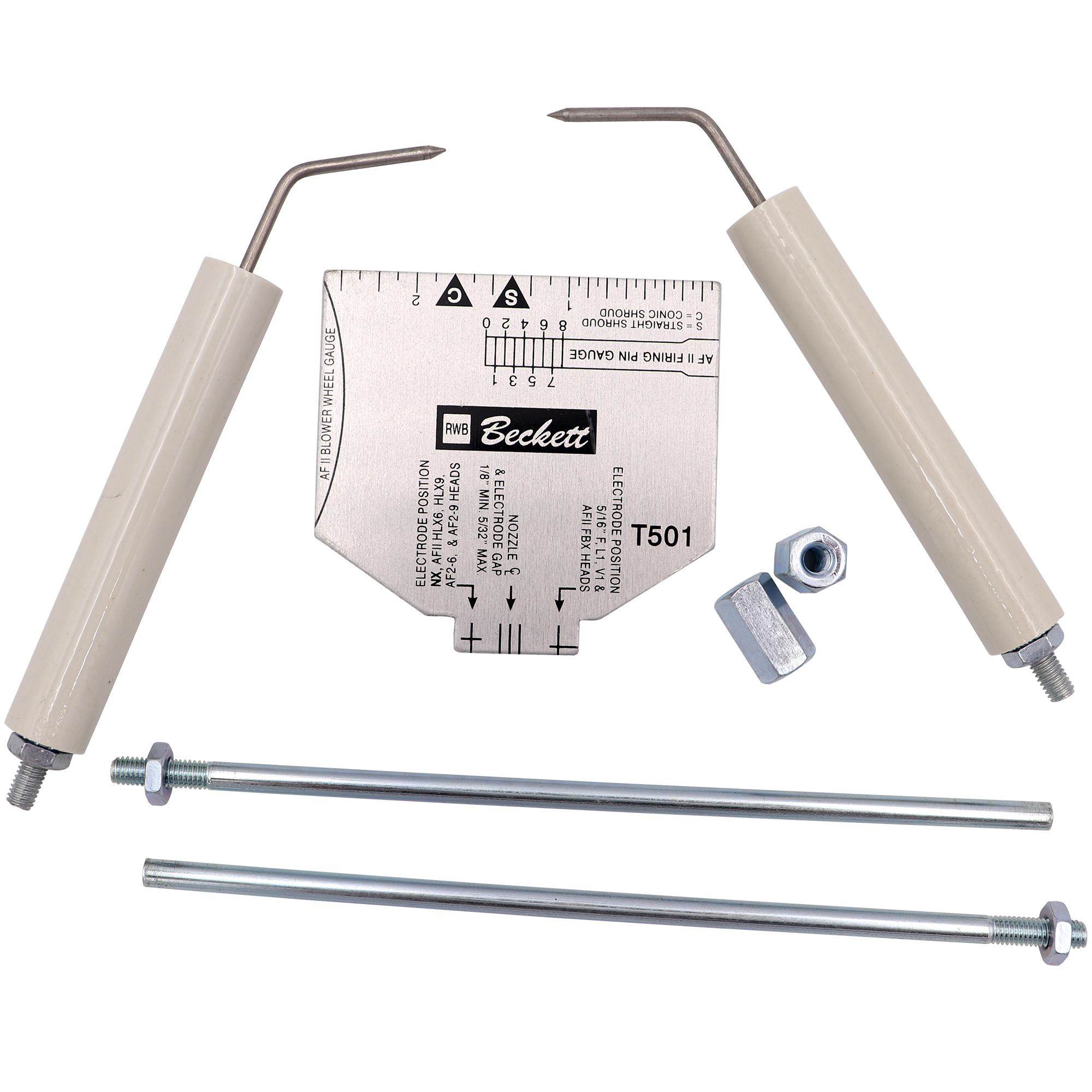

The electrode position of 1/16" in front of the nozzle and the 5/32" gap between the electrode tips will remain unchanged This Tutorial Will Guide you Through the Steps on Using the T501 Gauge to Set the Electrodes and "Z" Dimension on F-L-&V Series Retention Heads As you saw on our last video when the electrodes were set incorr.
Replacing & Adjusting Electrodes Wayne burner system. Service, Sales. Oil Burner Electrode Settings Guide & Measurements: Oil Burner Ignition Electrode Gap & Positions Oil furnaces are a really valuable part of your home, and they can help keep you toasty during chilly weather
Changing the burner head on the oil furnace YouTube. Set Ignition Electrodes:; Align Electrodes: Position the ignition electrodes 1/8 inch above the nozzle. Learn Beckett oil burner electrode adjustment, igniter troubleshooting, and nozzle assembly instructions in this comprehensive manual.
